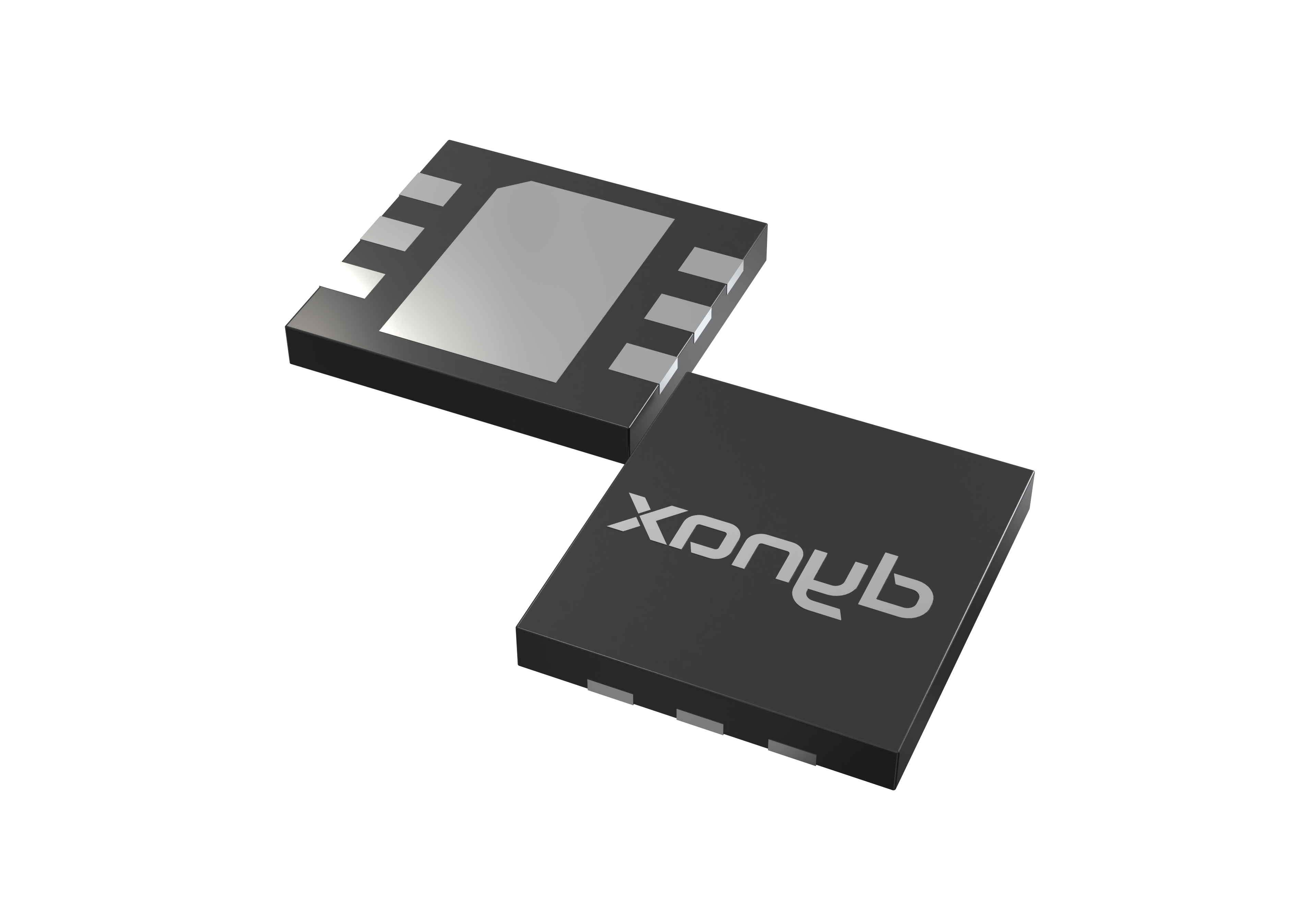

DXG2PH36A-70N is a 70 W RF GaN HEMT Transistor with second generation RF GaN technology from Dynax, which is ideal for cellular base station applications at frequencies from 3300 MHz to 3800 MHz.
| Parameter | Value | Unit |
| Frequency (Min.) | 3300 | MHz |
| Frequency (Max.) | 3800 | MHz |
| Supply Voltage (Typ.) | 48 | V |
| Psat (Typ.) | 48.1 | dBm |
| Power Gain @ 3500 MHz | 15.4 | dB |
| Efficiency @ 3500 MHz | 53.5 | % |
| ACPR @ 3500 MHz | -31.0 | dBc |
Note: Above Performance is the typical Doherty performance in Dynax’s demo with the device soldered onto the heatsink, test condition: VDS = 48 V, IDQA = 60 mA, VGSB = - 5.3 V, Pout = 39.3 dBm Avg., Single-Carrier W-CDMA, IQ Magnitude Clipping, Input Signal PAR = 7.5 dB @ 0.01 % Probability on CCDF. ACPR measured in 3.84 MHz Channel Bandwidth @ ±5 MHz Offset.
