3300MHz-3800MHz 6W Final Solution

应用方案 | 日期：2023-06-30 | 阅读：

	Final:DXG2PH36A-70N

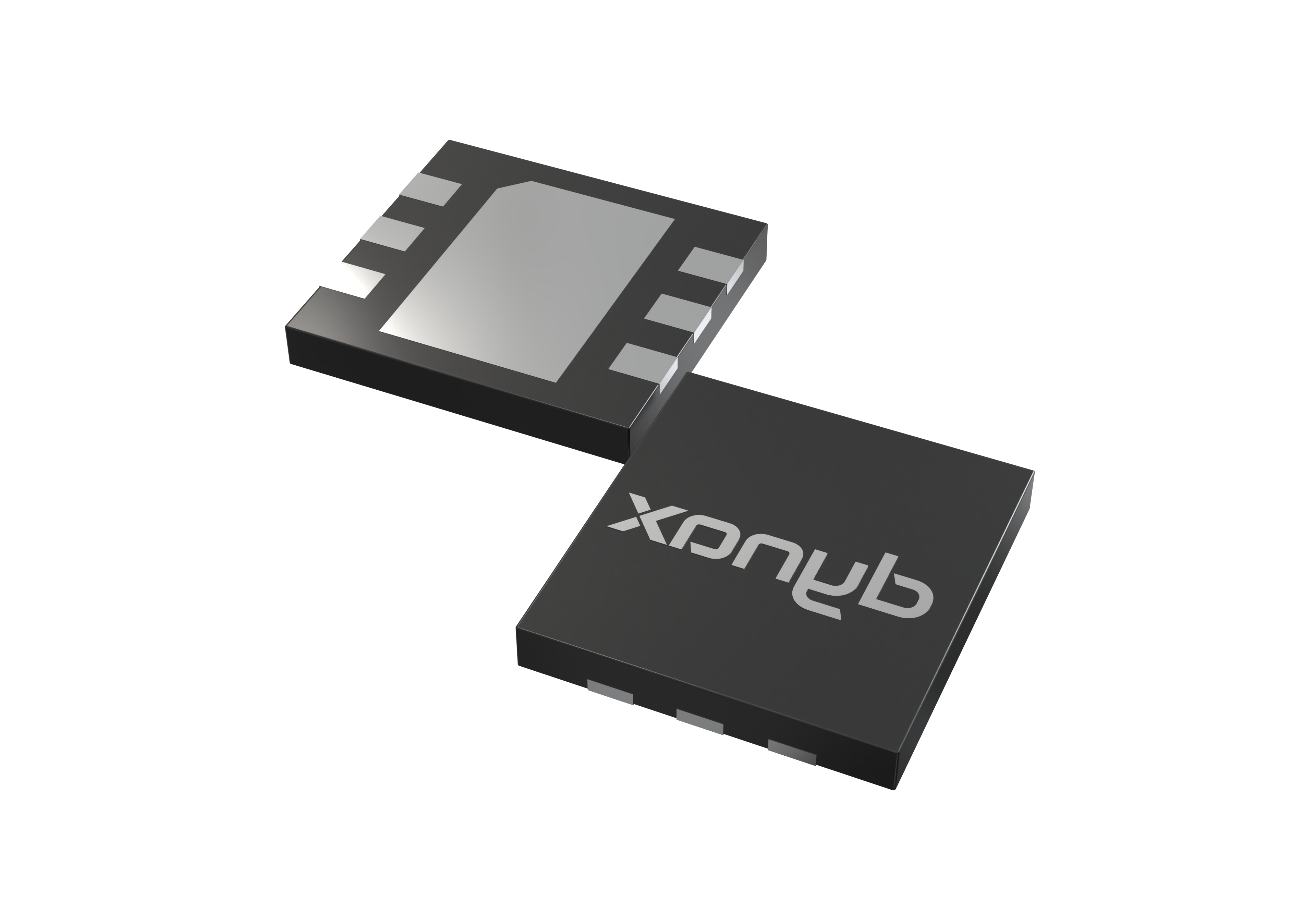

	Package Type:DFN 7mm×6.5mm

	CW Pulsed 10%	Modulated  Signal
Freq (MHz)	Psat (dBm)	Gp (dB) @39.3dBm	DE (%) @39.3dBm	ACLR (dBc) @ 39.3dBm
3400	48.2	15.6	52.5	-32.0
3500	48.1	15.4	53.5	-31.0
3600	48.0	15.2	53.0	-32.0
Remark : Test  ConditionCW Pulsed: 10% Duty Cycle, 100uS Duration;Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;Tested without isolator.
